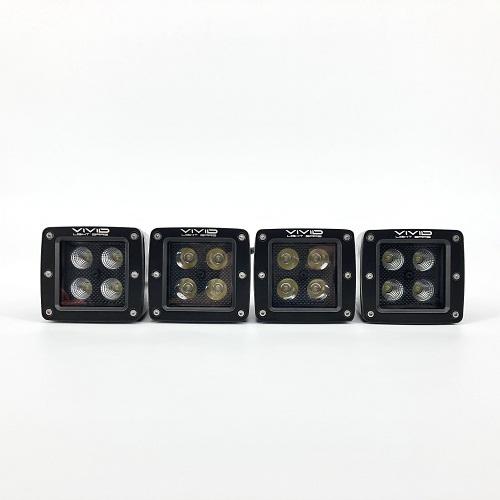

3.2" 12W Dual Color Strobe LED Pods

3.2" 12W Dual Color Strobe LED Pods

Specification:

• Product name: 3.2" 12W Dual Color Strobe LED Pods
• Dimensions:  3.2 inch
• LED Power:  12W
• Optional Beam: Flood/Spot
• Operating Voltage: 12V-24V DC
• 4pcs*5w Epistar LEDs
• Waterproof Rate: IP67
• Body Color: Black
• Lens Material: PC
• Current Draw: 0.83A@12V, 0.42A@24V
• White Light Color Temperature: 6000K
• Housing Material: Diecast aluminum alloy
• Mounting Bracket: Stainless Steel
• Working Temperature: -40ºC~+85ºC
• Lifespan: >30,000hrs
• Wiring Harness Length: 16.4 feet
• Warranty: 2 Years

About Brake/Turn Signal Line

This Brake/Turn Signal Line has 3 wires, which will have different flash effects when touch with positive wire.
Black Line for Right Turn;
Yellow Line for Left Turn;
Red Line for Brake.

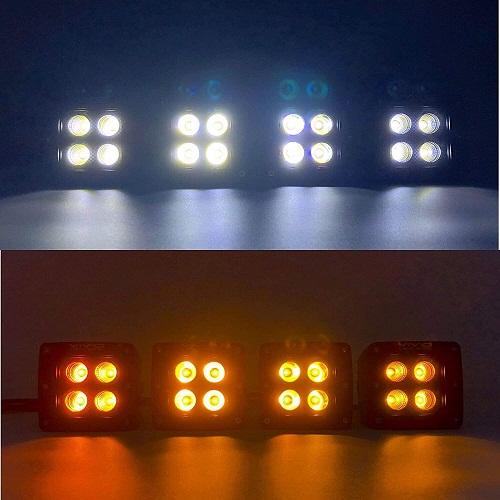

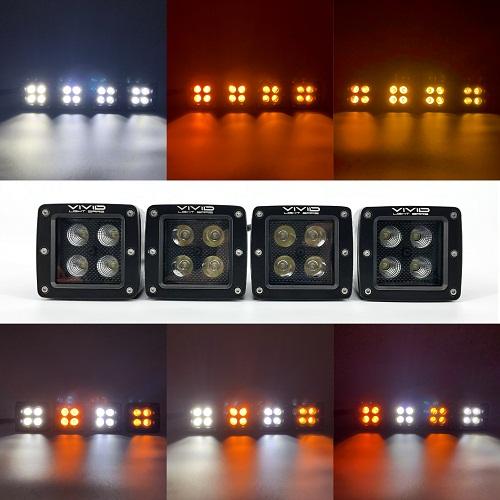

As the newest alternating flash pattern added, the newest upgrade 3.2" 12W Dual Color Strobe LED Pods become cooler. The new learning code remote controller solve the problem of not sync and anti-interference, now you can buy 2 or more pairs 3.2" 12W Dual Color Strobe LED Pods and don't worry about they are not sync.

3.2" 12W Dual Color Strobe LED Pods

What include the package :

• 2/4/6/8 x  3.2" 12W Dual Color Strobe LED Pods

• Universal Mount Bracket
• 1 x Wireless Remote

• 1 x Synchronous Wire Harness


How to use the anti-interfence remote:

Identification code learning: within 6 seconds after the pods are on power, click one of any buttons of the new remote at least three seconds, then let go of it, remote learning finish.

If you want to use over two remote to control these pods, please repeat the operation within 6 seconds after the first step

If you still can not control the pods, please repeat the operation of first step as well.

Delete identification code: click one of any buttons before pods are on power, connect the pods to power source, continue clicking the button over 3 seconds, then let go of it, identification code is deleted.

If delete fail, please repeat the operation.
